Biobase China Vertical Planetary Ball Mill (Semi

Overview

Basic Info.

Model NO.	BKBM-V0.4
Customized	Non-Customized
Condition	New
Warranty	1 Year
Pot Quantity	4
Reciprocal Running Time	1~999min
Running Time Range	1~9999min
Volume of Each Capacity	50~100ml
Model	Bkbm-V0.4
Transport Package	Export Packing
Specification	BKBM-V0.4
Trademark	BIOBASE
Origin	China
Production Capacity	500 PCS / Mout

Product Description

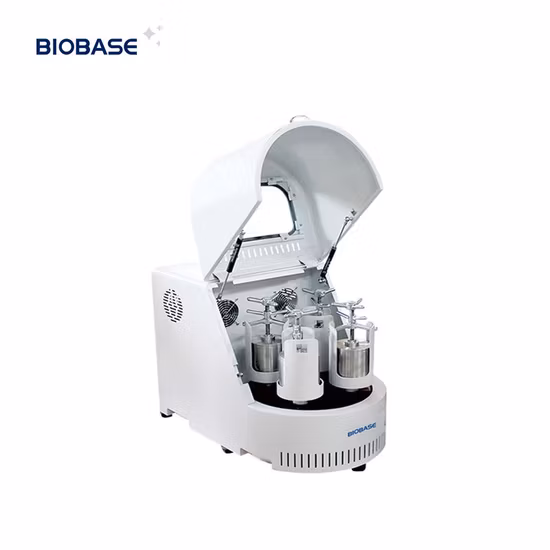

Vertical Planetary Ball Mill(Semi-circle Model)

Product Description

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

Product Parameters

Model	BKBM-V0.4	BKBM-V2
Capacity	0.4L	2L
Volume of Each Capacity	50~100ml	50~500ml
Pot Quantity	4 pcs
Running Time Range	1~9999min
Reciprocal Running Time	1~999min
Adjustable Speed Revolution	45~435rpm	35~335rpm
Rotation	90~870rpm	70~670rpm
Noise	≤58dB	≤60dB
Speed Control Mode	Frequency Control
Transmission Mode	Gear Drive
Working Mode	2 or 4 pots can be used each time
Max Volume of Each Pot	2/3
Feed Size	Soft and Crispy material<10mm, Other materials<3mm
Out-put Granularity	Minimum Granularity can be reached to 0.1um
Adjusting Mode of Rotate Speed	Frequency converter with stepless speed regulation
Consumption	0.25KW	0.75KW
Power Supply	AC110/220V±10%, 50/60Hz
External Size(W*D*H)mm	530*300*340	730*430*550
Packing Size(W*D*H)mm	595*360*485	820*530*720
Net Weight(kg)	26	74
Gross Weight(kg)	30	80

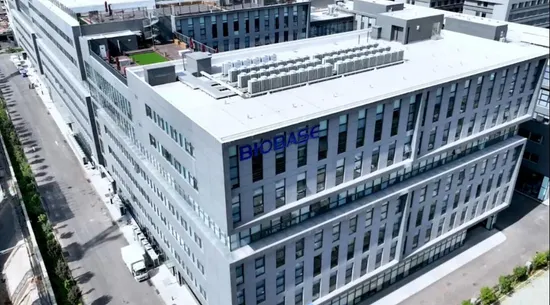

Company Profile
